Foton Auman 380HP 8X4 Dump Truck

✅ Product Description:
The Foton Auman ETX 9 Series 8X4 Dump Truck (BJ3318DMPKC-1) is a heavy-duty vehicle engineered for urban construction debris and highway material transport. It is powered by the robust Weichai WP12.380E32 engine, delivering 380 horsepower and 1600 Nm of torque, ideal for demanding work conditions.

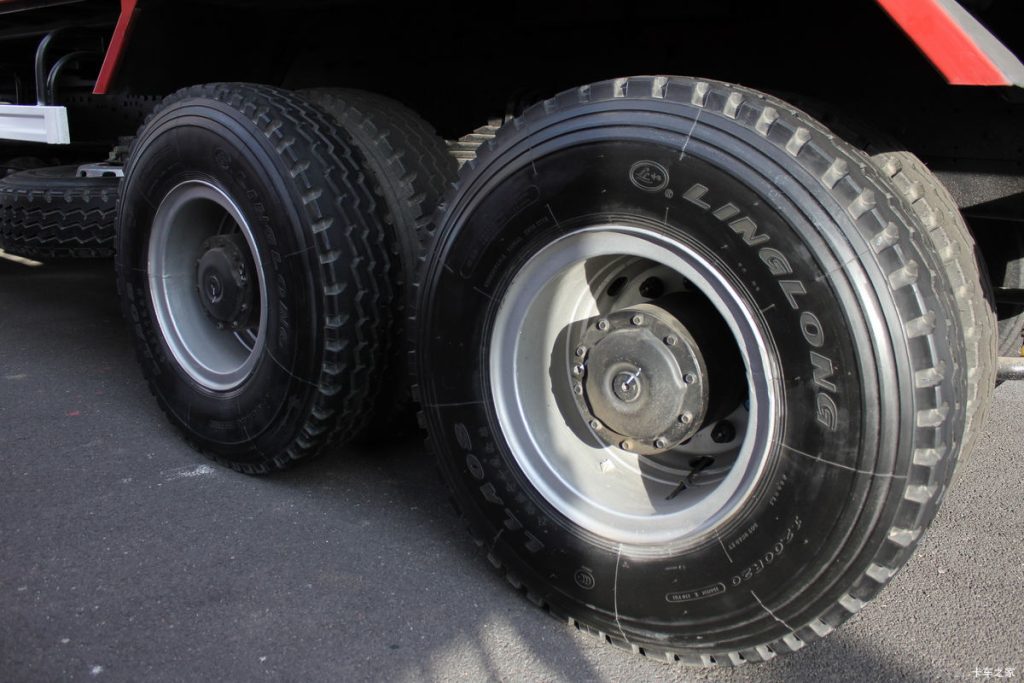

With a spacious 7.2-meter steel dump box and an 8X4 configuration, the ETX 9 Series offers both large capacity and excellent load stability. The durable chassis rides on a 13/14/12 multi-leaf spring suspension and 12 high-strength 12.00-20 engineering tires, ensuring optimal performance on rough and unpaved roads.
Equipped with the Fast 12JSD180T 12-speed manual gearbox and a 5.26 axle ratio, the truck provides smooth gear transitions and strong traction in challenging work environments. The vehicle supports a total weight of 31 tons with a rated payload of over 16 tons, making it an excellent choice for high-volume hauling.
The 350-liter fuel tank supports long shifts, while features like ABS and optional eco covers enhance both safety and environmental compliance. Built to Euro III (China III) emission standards, this vehicle uses water-cooled, turbocharged, intercooled diesel technology to reduce emissions and fuel consumption.
Manufactured in Beijing, the ETX 9 Series dump truck combines performance, reliability, and rugged design—ideal for construction contractors and logistics operators focused on efficiency and durability.


✅ Key Features and Technical Highlights:
Parameter | Value |
---|---|
Model | BJ3318DMPKC-1 |
Drive Type | 8X4 |
Engine | Weichai WP12.380E32, 380HP, 11.6L |
Max Torque | 1600 Nm @ 1300–1400 rpm |
Transmission | Fast 12JSD180T, 12-speed manual |
Axle Ratio | 5.26 |
GVW | 31,000 kg |
Curb Weight | 14,795 kg |
Payload Capacity | 16,010 kg |
Suspension | Leaf spring (13/14/12) |
Dump Body Size | 7.2m (L) x 2.3m (W) x 1.1m (H) |
Dump Type | Rear tipping, steel U-shape |
Fuel Tank | 350L |
Tires | 12 pcs, 12.00-20 engineering type |
Brakes | ABS + drum brakes |
Dimensions (L×W×H) | 10180 × 2495 × 3400 mm |
Emission Standard | China III / Euro III |
Origin | Beijing, China |
Applications | City construction, road transport |
Contact us today for a detailed quotation and to learn more!
