Foton Auman 380HP 8X4 Dump Truck

Foton Auman ETX 9 Series dump truck features a 380HP Weichai engine, strong 8X4 chassis, and a 7.2-meter dump body. Designed for urban construction and road transport, it delivers high torque and strong load capacity.

Category:

Description

Foton Auman 380HP 8X4 Dump Truck

Foton Auman ETX 9 Series 380HP 8X4 Dump Truck with 7.2m box

✅ Product Description:

The Foton Auman ETX 9 Series 8X4 Dump Truck (BJ3318DMPKC-1) is a heavy-duty vehicle engineered for urban construction debris and highway material transport. It is powered by the robust Weichai WP12.380E32 engine, delivering 380 horsepower and 1600 Nm of torque, ideal for demanding work conditions.

With a spacious 7.2-meter steel dump box and an 8X4 configuration, the ETX 9 Series offers both large capacity and excellent load stability. The durable chassis rides on a 13/14/12 multi-leaf spring suspension and 12 high-strength 12.00-20 engineering tires, ensuring optimal performance on rough and unpaved roads.

Equipped with the Fast 12JSD180T 12-speed manual gearbox and a 5.26 axle ratio, the truck provides smooth gear transitions and strong traction in challenging work environments. The vehicle supports a total weight of 31 tons with a rated payload of over 16 tons, making it an excellent choice for high-volume hauling.

The 350-liter fuel tank supports long shifts, while features like ABS and optional eco covers enhance both safety and environmental compliance. Built to Euro III (China III) emission standards, this vehicle uses water-cooled, turbocharged, intercooled diesel technology to reduce emissions and fuel consumption.

Manufactured in Beijing, the ETX 9 Series dump truck combines performance, reliability, and rugged design—ideal for construction contractors and logistics operators focused on efficiency and durability.

✅ Key Features and Technical Highlights:

ParameterValue
ModelBJ3318DMPKC-1
Drive Type8X4
EngineWeichai WP12.380E32, 380HP, 11.6L
Max Torque1600 Nm @ 1300–1400 rpm
TransmissionFast 12JSD180T, 12-speed manual
Axle Ratio5.26
GVW31,000 kg
Curb Weight14,795 kg
Payload Capacity16,010 kg
SuspensionLeaf spring (13/14/12)
Dump Body Size7.2m (L) x 2.3m (W) x 1.1m (H)
Dump TypeRear tipping, steel U-shape
Fuel Tank350L

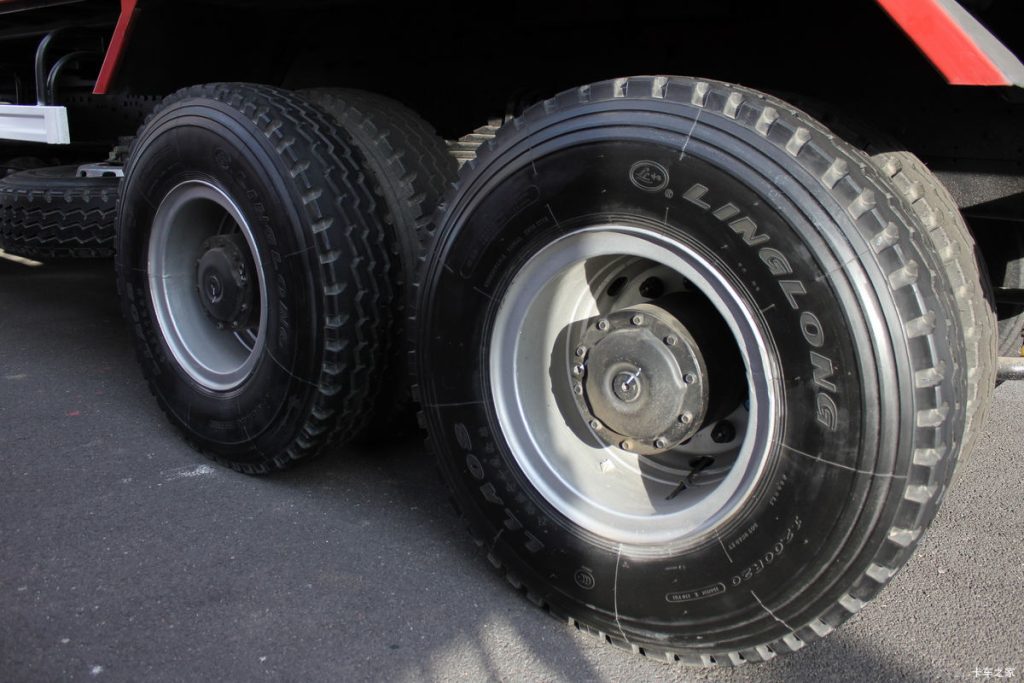

Tires12 pcs, 12.00-20 engineering type
BrakesABS + drum brakes
Dimensions (L×W×H)10180 × 2495 × 3400 mm
Emission StandardChina III / Euro III
OriginBeijing, China
ApplicationsCity construction, road transport

Contact us today for a detailed quotation and to learn more!
