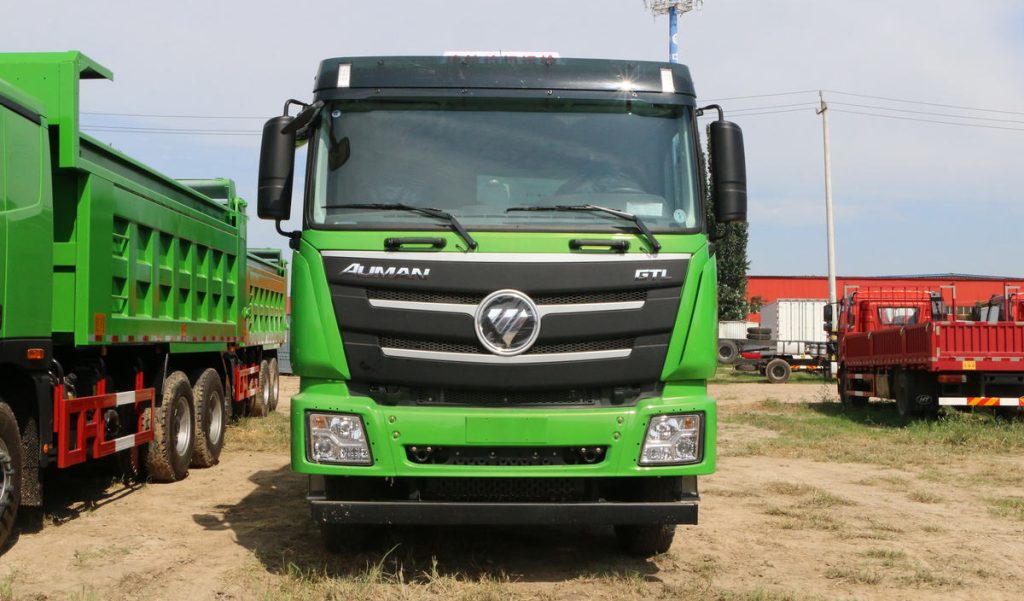

Foton Auman 400HP 6X4 Dump Truck

✅ Product Description:

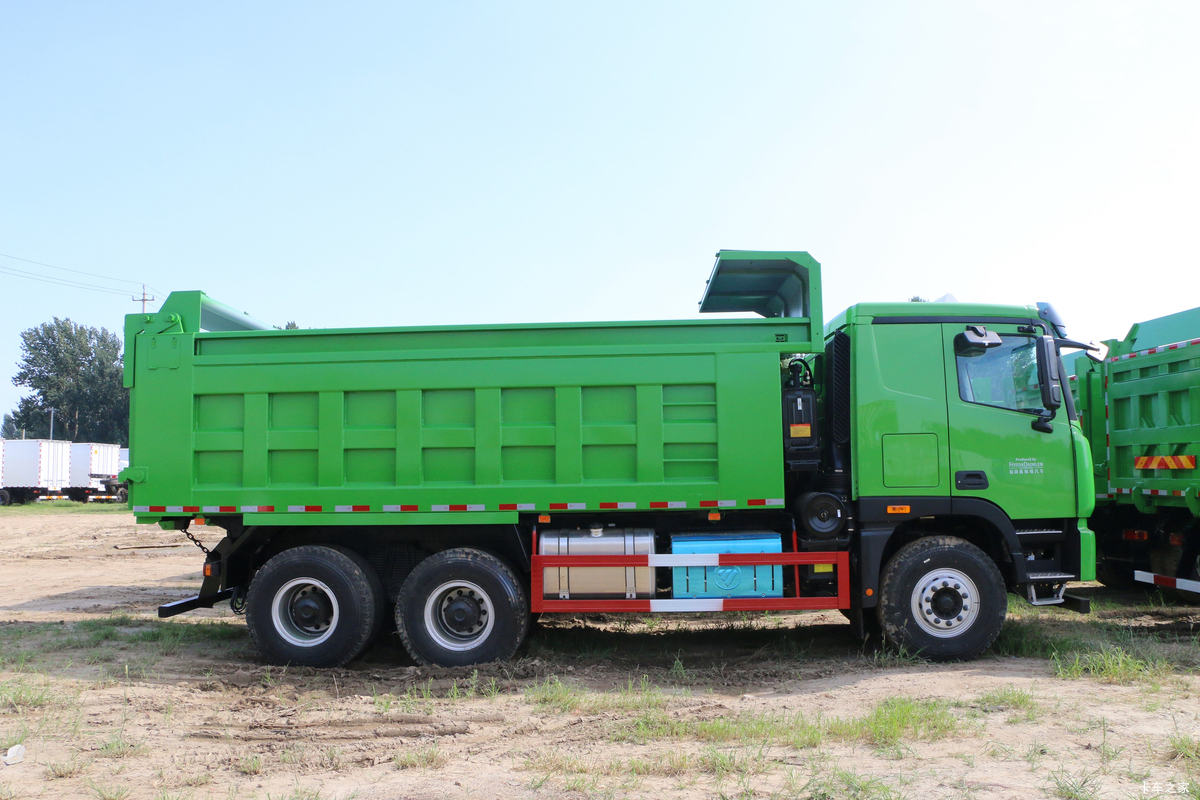

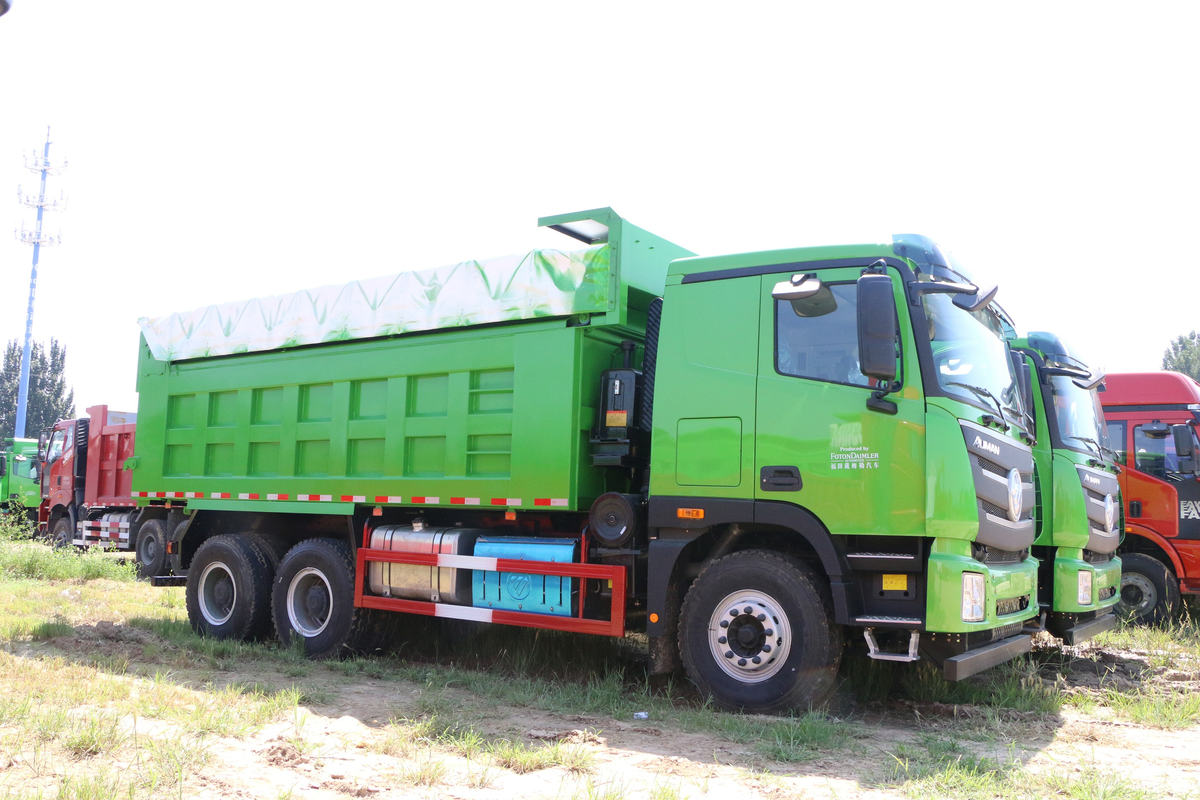

The Foton Auman GTL 9 Series 6X4 Dump Truck (BJ3259Y6DLL-02) is a powerful and efficient heavy-duty solution for demanding urban construction and mining logistics. Featuring the advanced Weichai WP12.400E62 Euro 6 diesel engine, this truck delivers 400 horsepower and 2000 Nm of torque, ensuring outstanding performance even under full load.

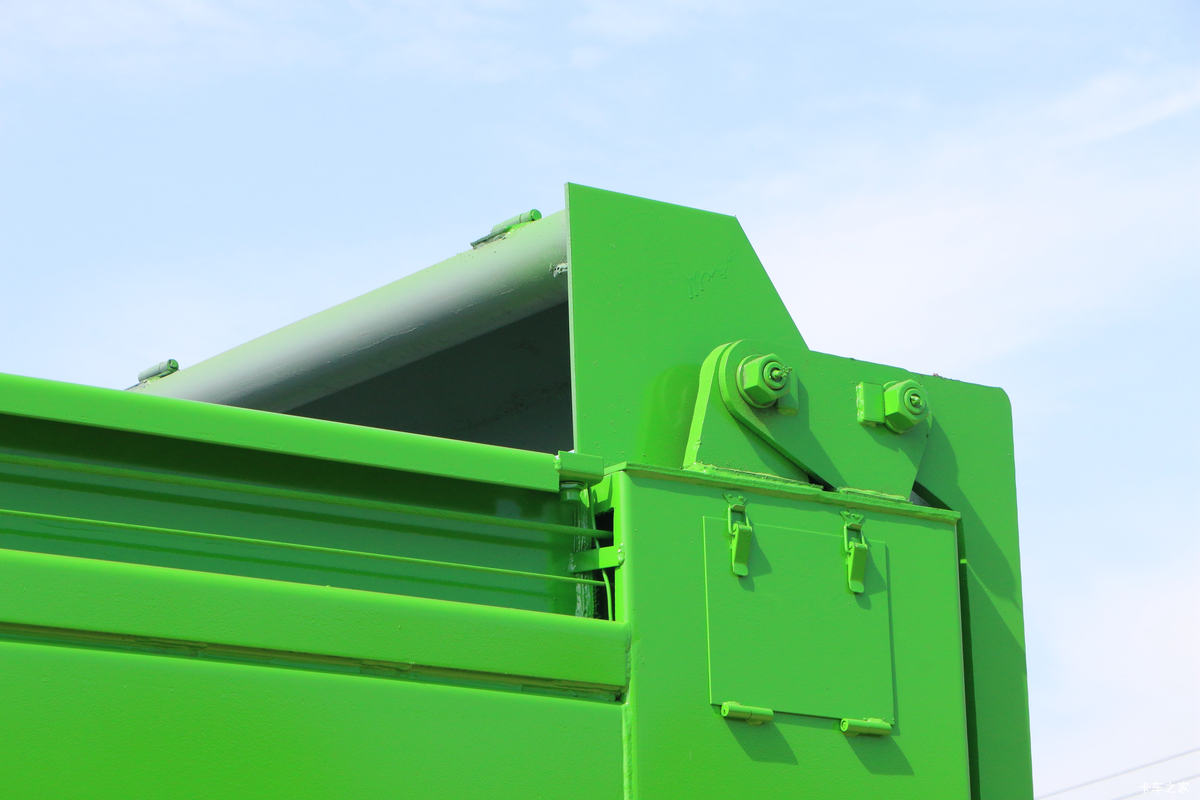

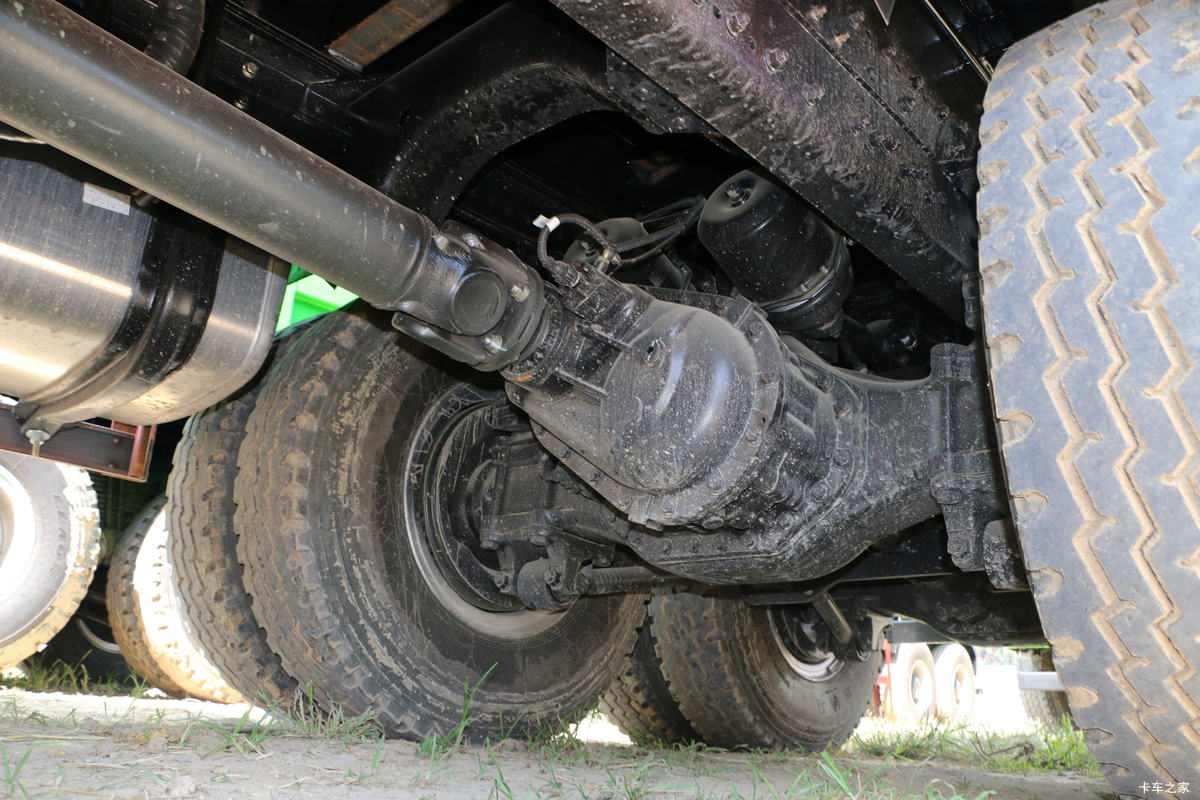

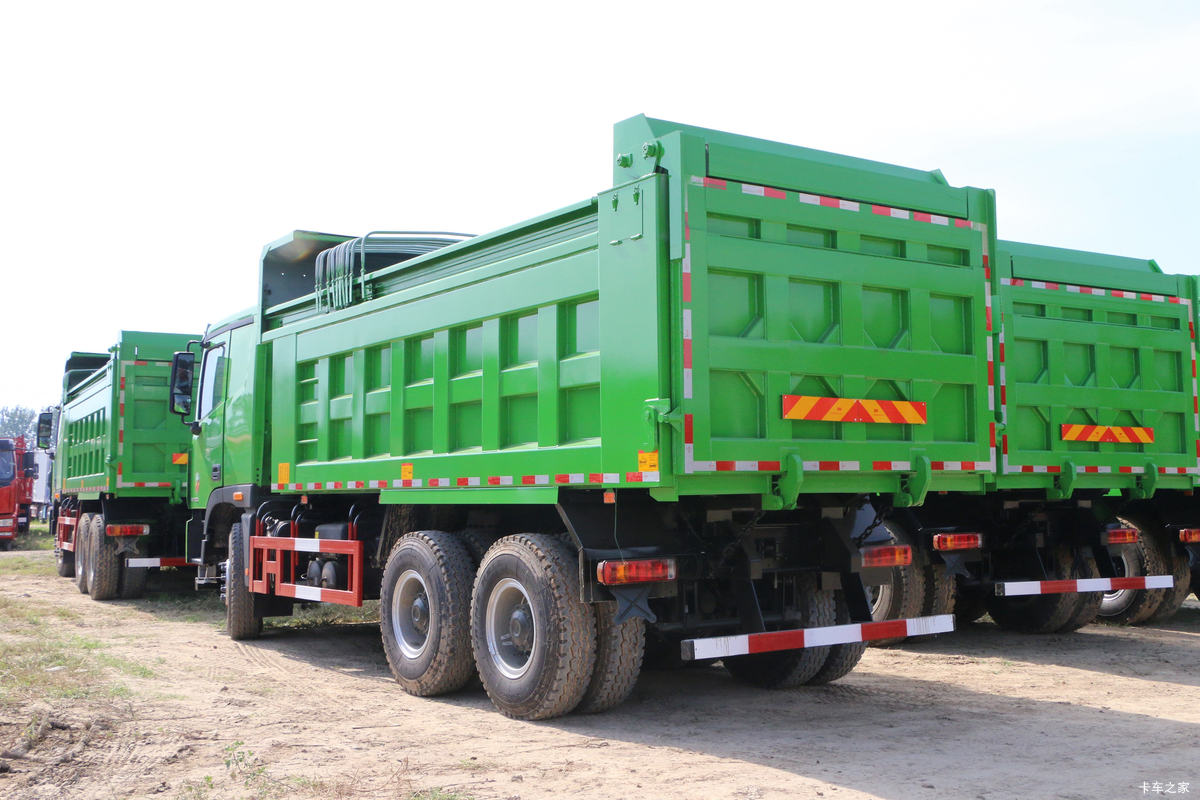

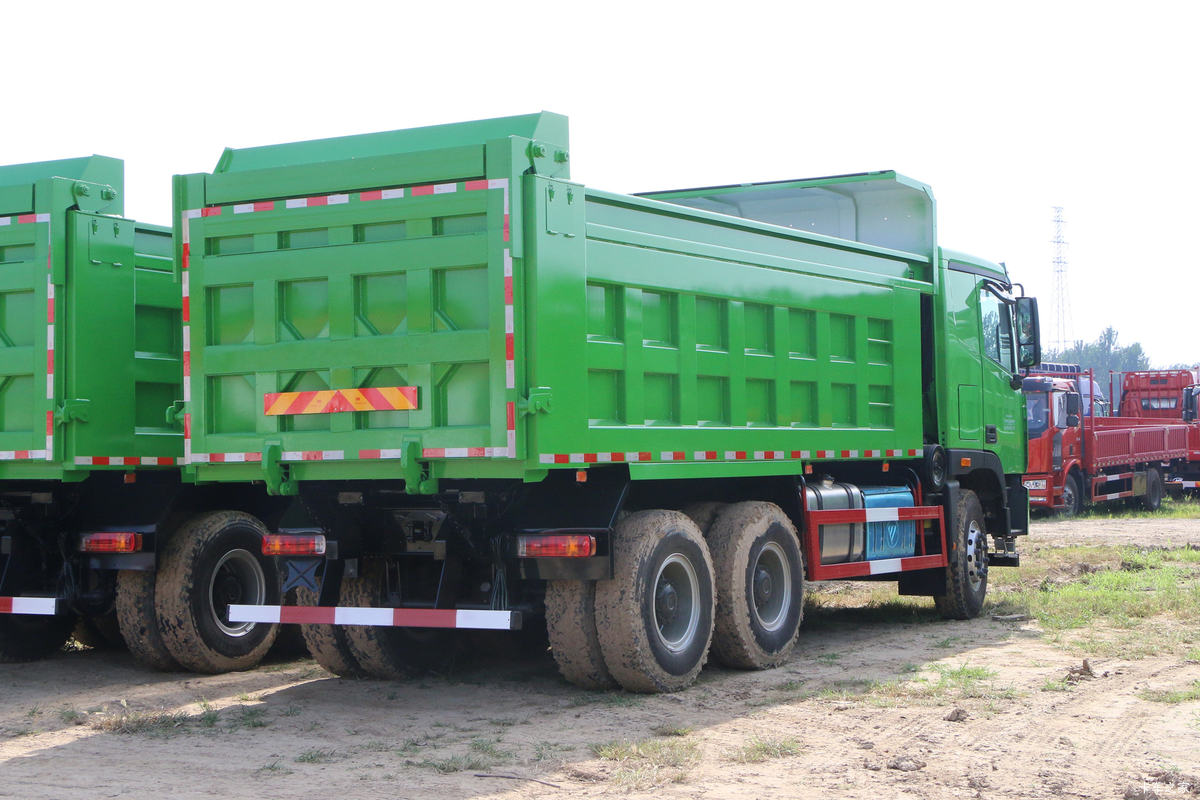

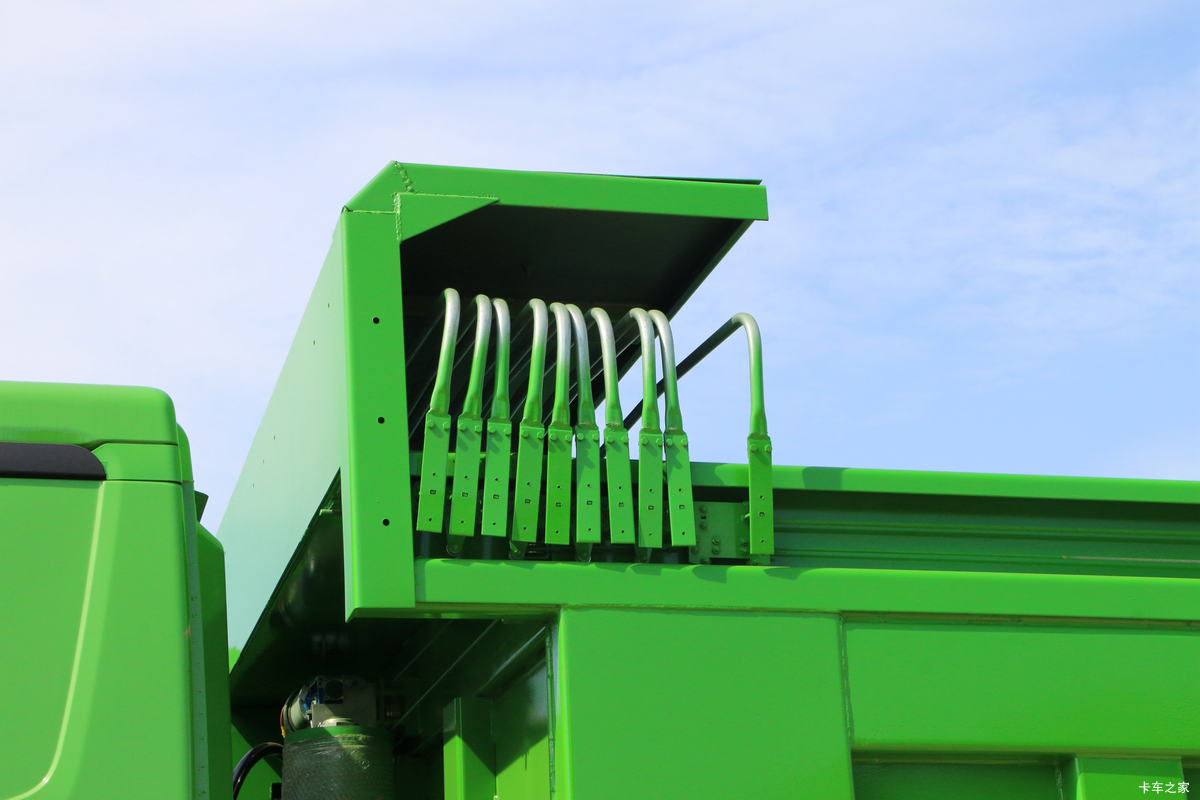

Its 6X4 drivetrain combined with a Fast 12-speed manual gearbox and 5.92 rear axle ratio provides excellent traction, stability, and control across varied terrain. The 5.6-meter dump box is ideal for hauling construction debris, sand, gravel, or mining materials, with a high-strength steel body that supports durable rear tipping operations.

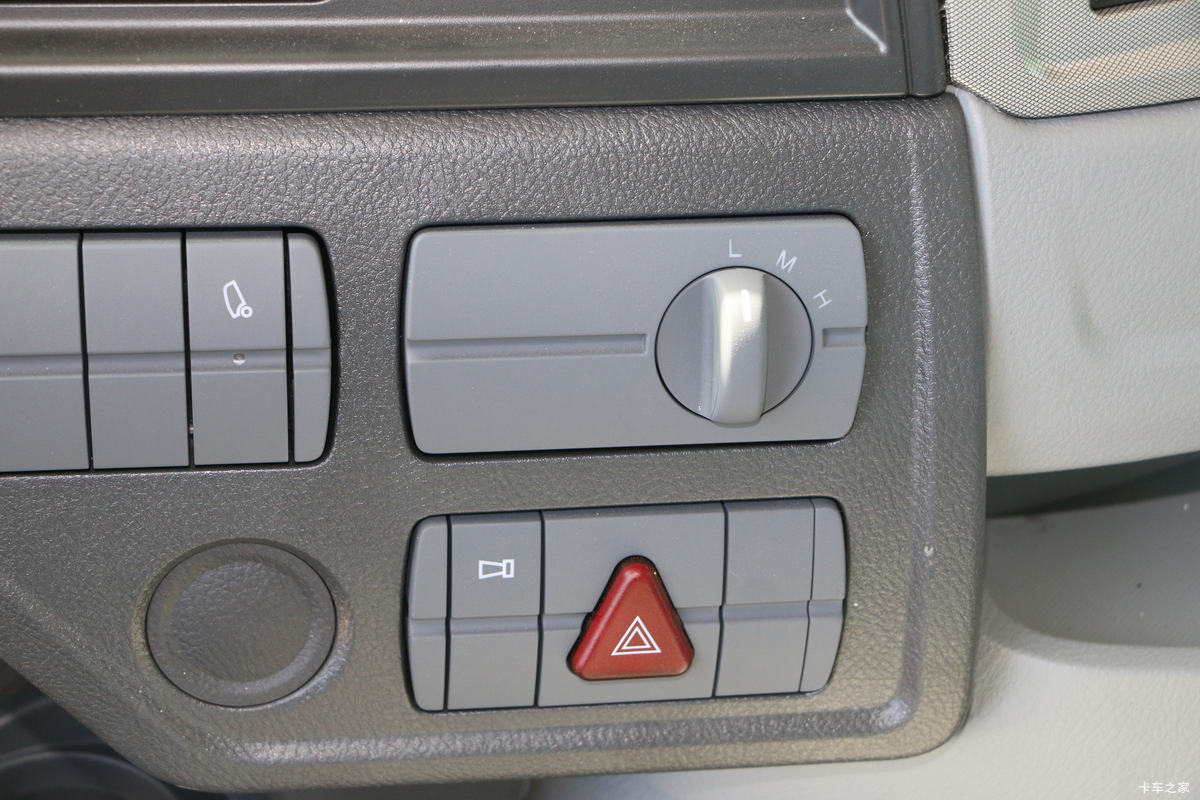

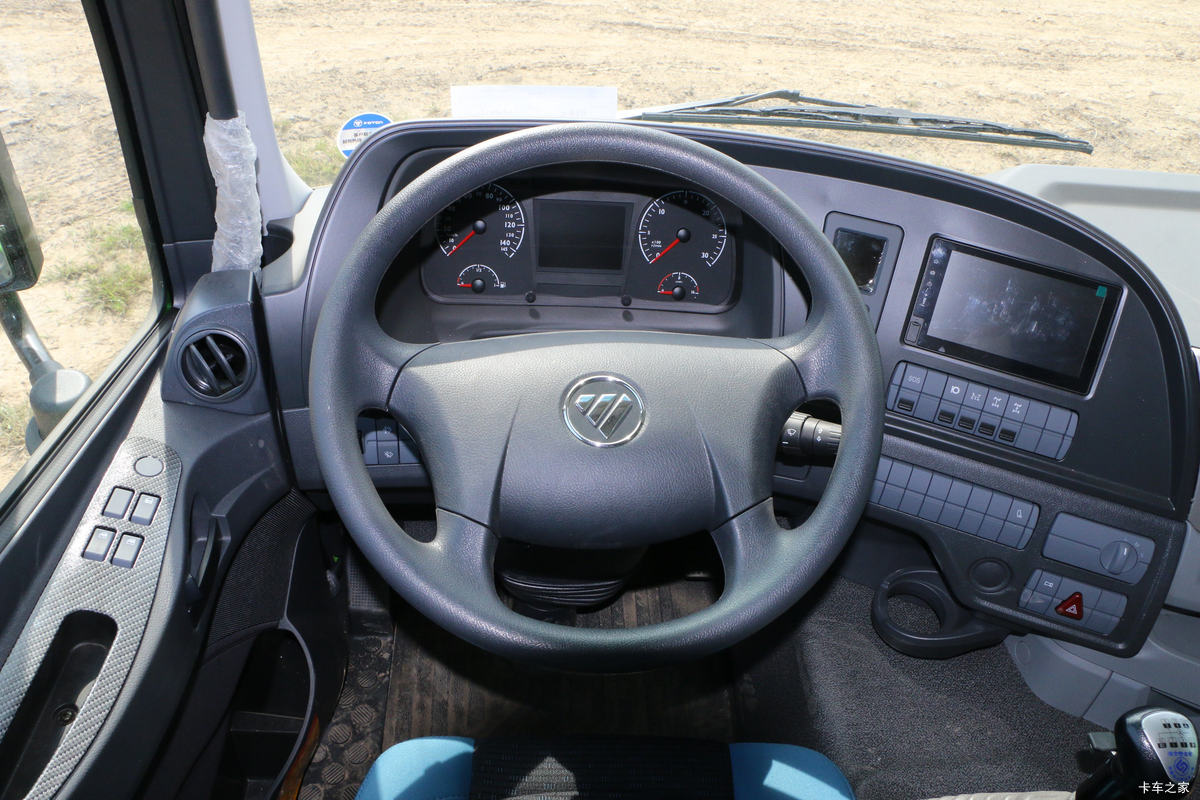

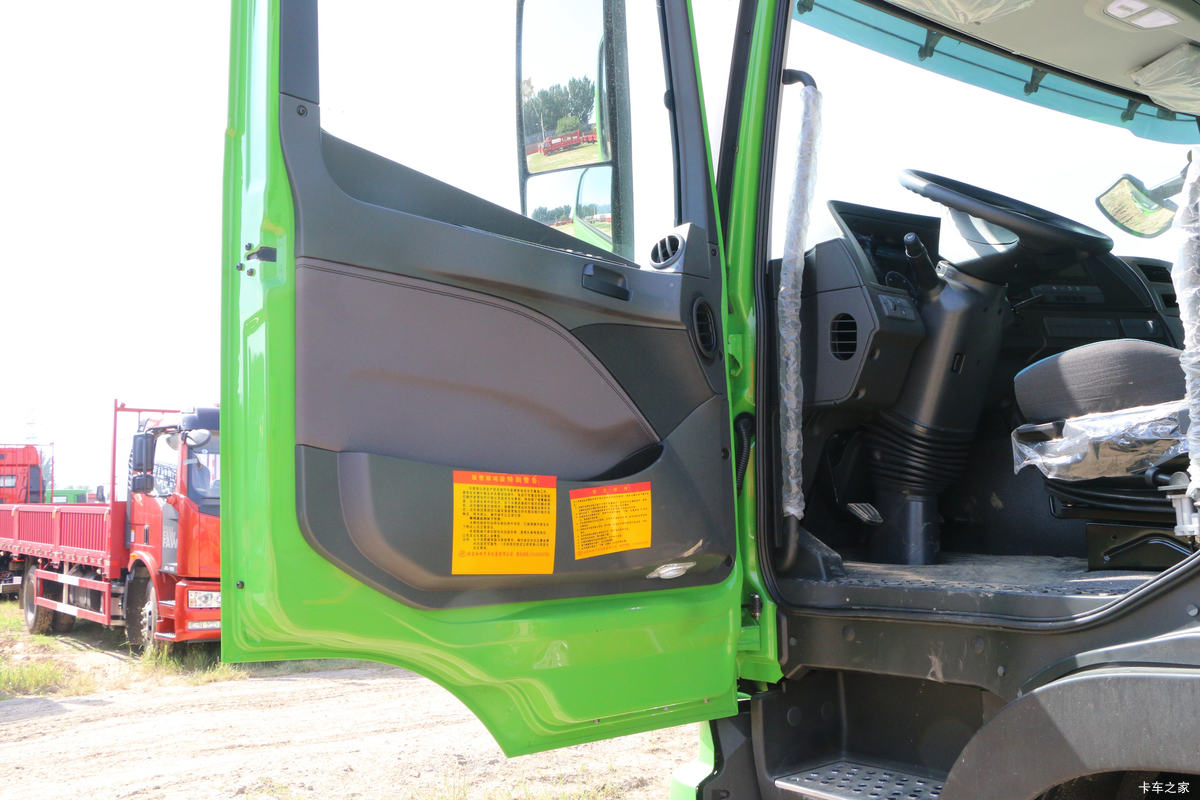

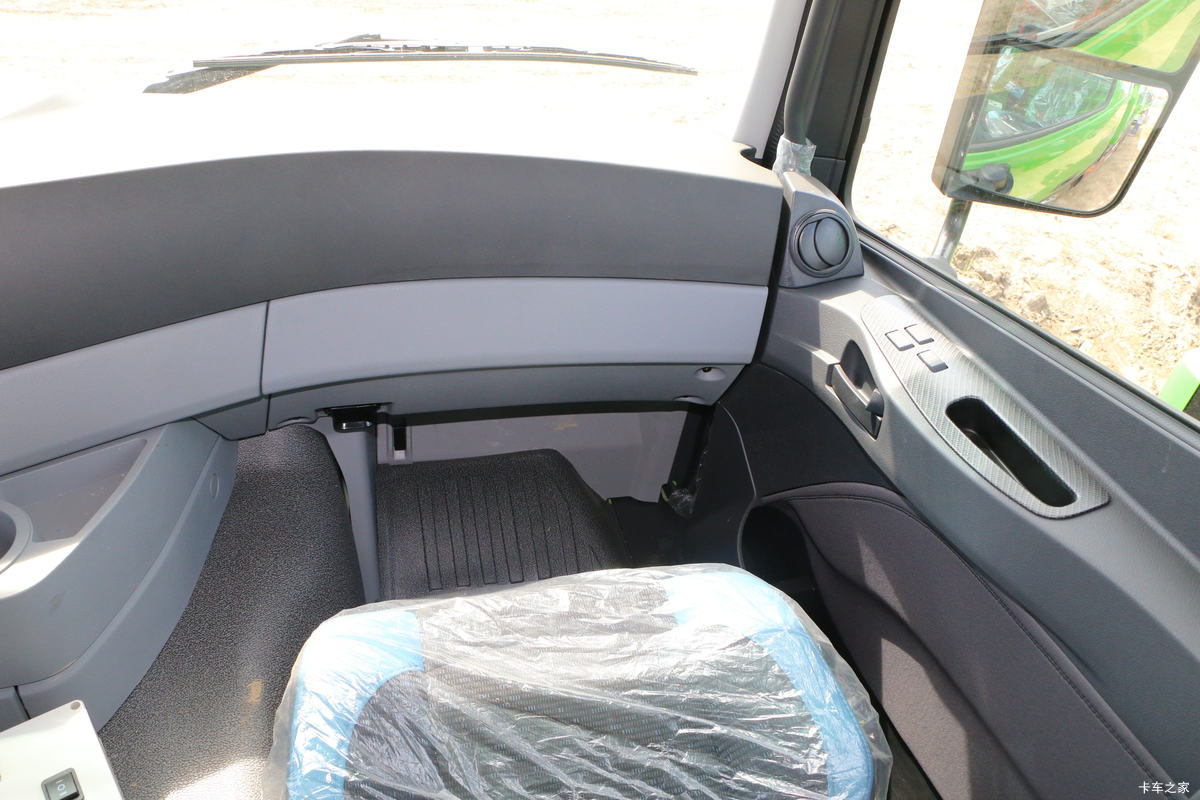

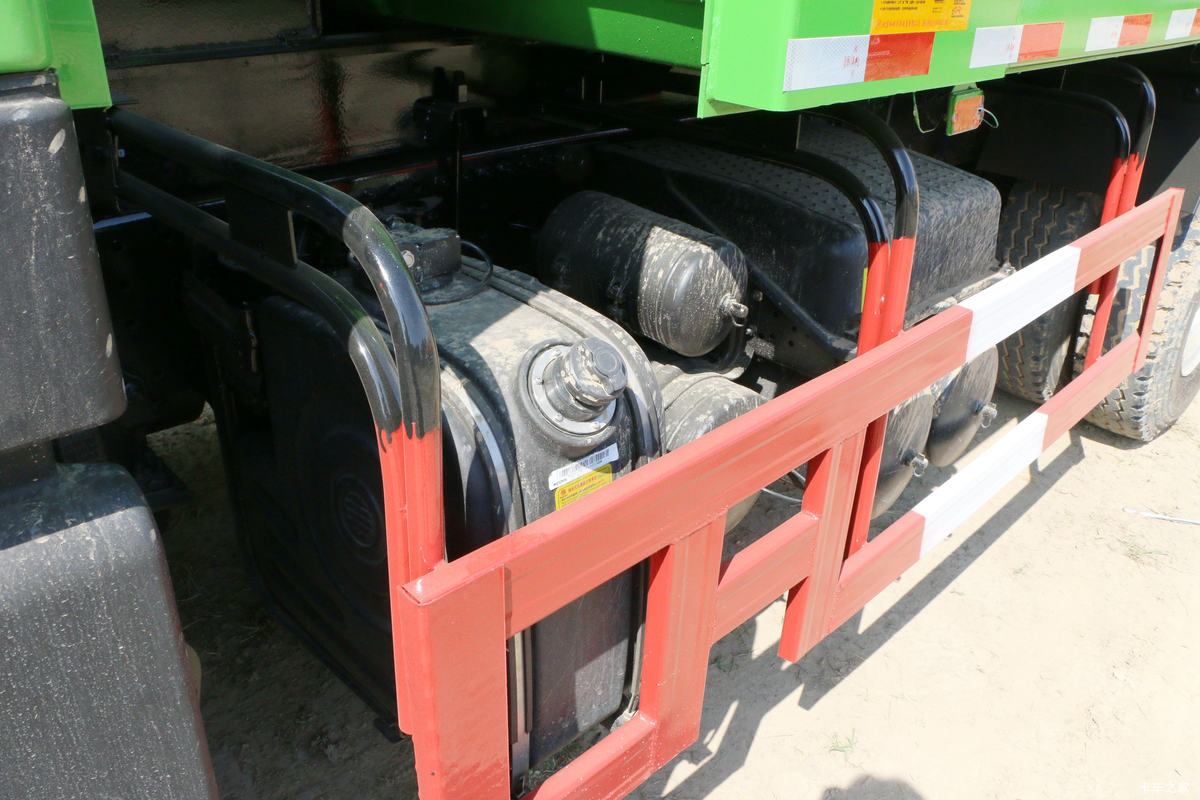

The GTL cabin adopts a flat-roof design, offering comfort and functionality with power windows, central locking, electric mirrors, and automatic air conditioning. The truck is also fitted with a 350-liter aluminum fuel tank for extended working hours, and ABS braking system to ensure road safety.

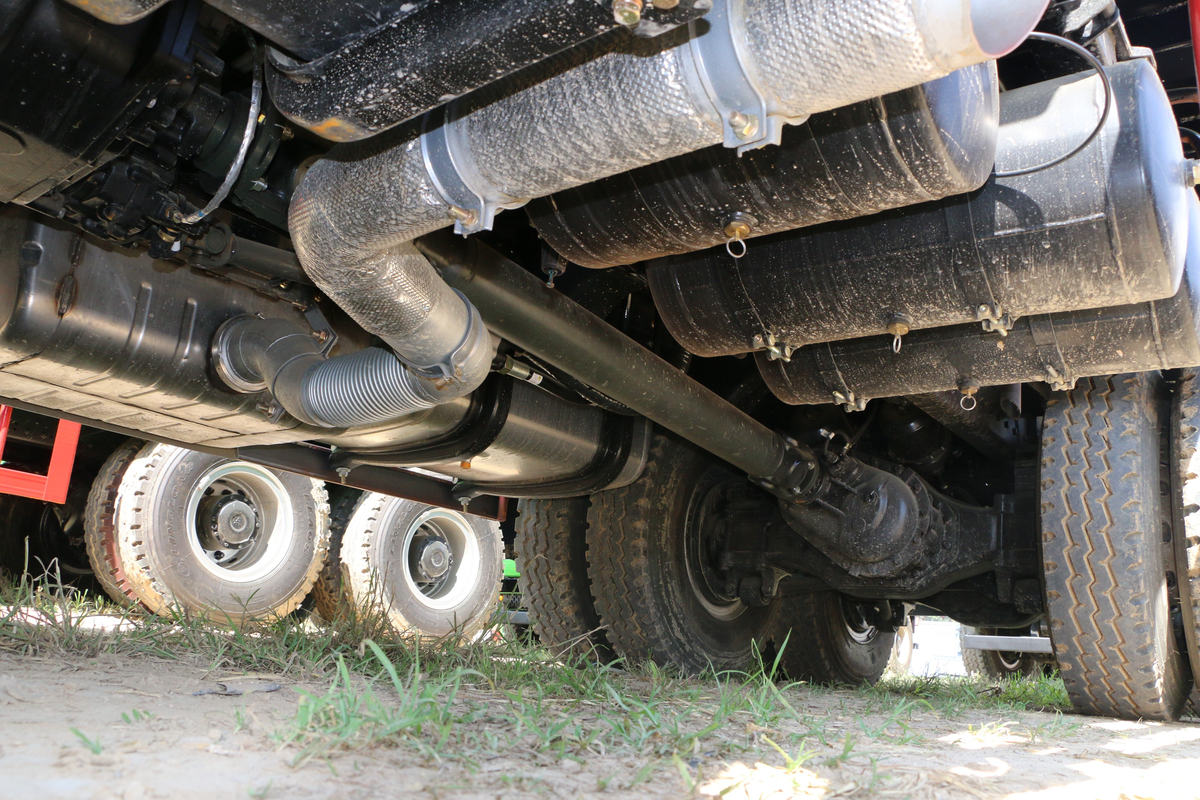

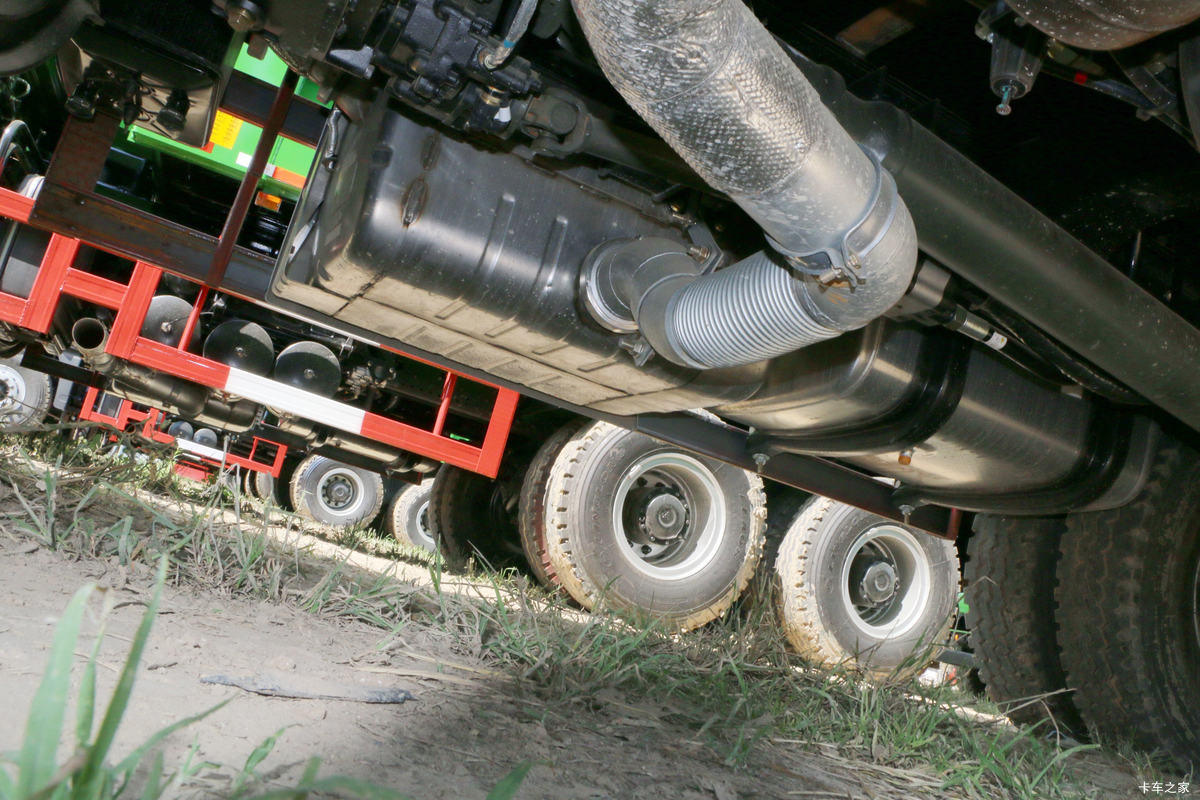

Compliant with China VI (Euro 6) emission standards, the truck integrates advanced emission control technologies like common rail injection, DPF, DOC, and Hi-SCR, making it environmentally friendly while reducing fuel consumption.

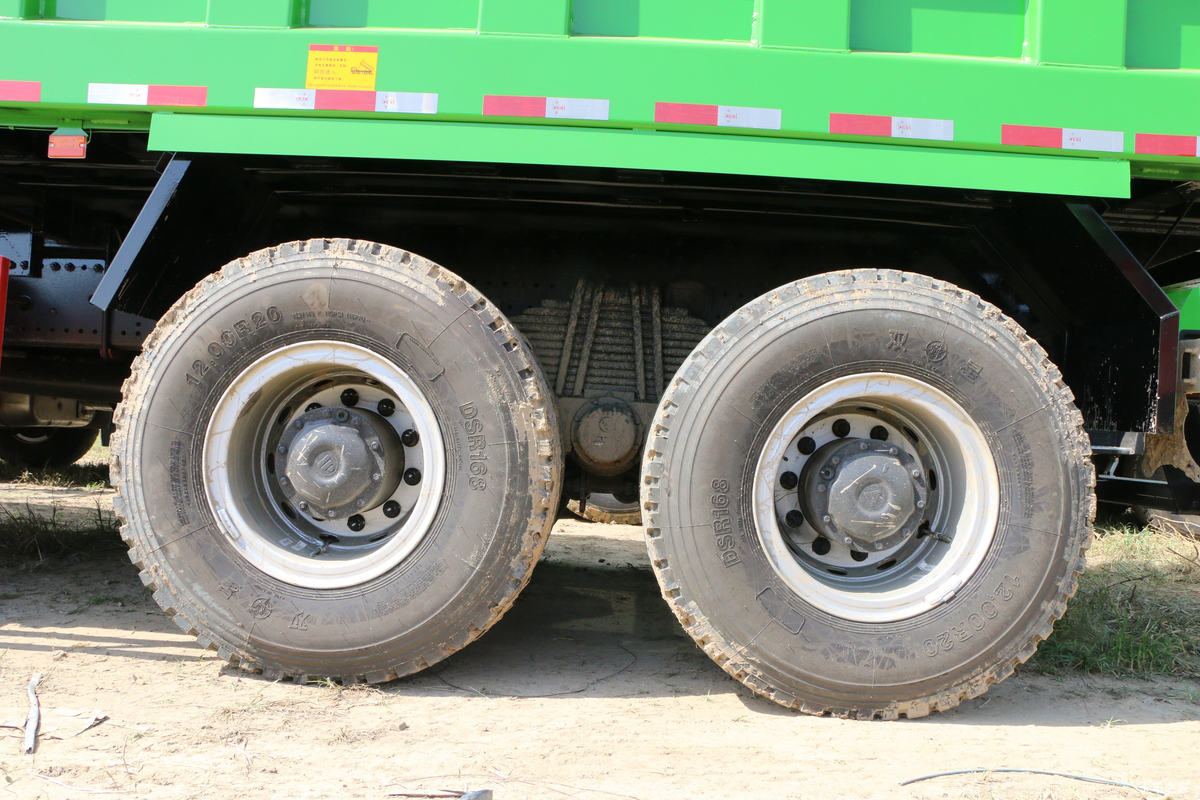

With a total weight of 25 tons, a payload of over 12 tons, and 12.00R20 heavy-duty tires, the Foton Auman GTL 9 Series is a reliable choice for contractors seeking strength, compliance, and cost-efficiency in one heavy-duty tipper truck.









✅ Key Features and Technical Highlights:
Parameter | Value |
---|---|
Model | BJ3259Y6DLL-02 |
Drive Type | 6X4 |
Engine | Weichai WP12.400E62, 400HP, 11.6L |
Max Torque | 2000 Nm @ 1000–1400 rpm |
Transmission | Fast 12-speed manual (法士特) |

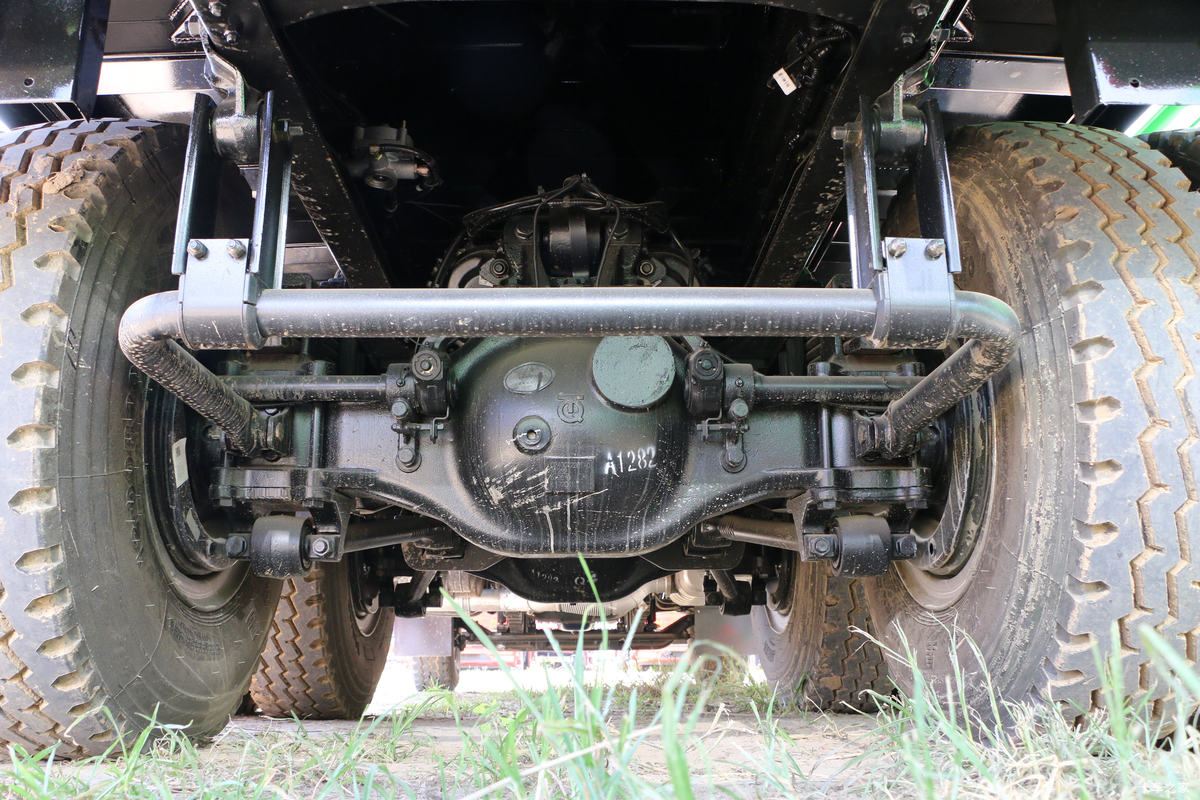

Axle Ratio | 5.92 |
GVW | 25,000 kg |
Curb Weight | 12,500 kg |
Payload Capacity | 12,370 kg |
Suspension | Leaf spring (9/12, 10/12, or 11/14) |
Dump Body Size | 5.6m (L) × 2.35m (W) × 1.5m (H) |

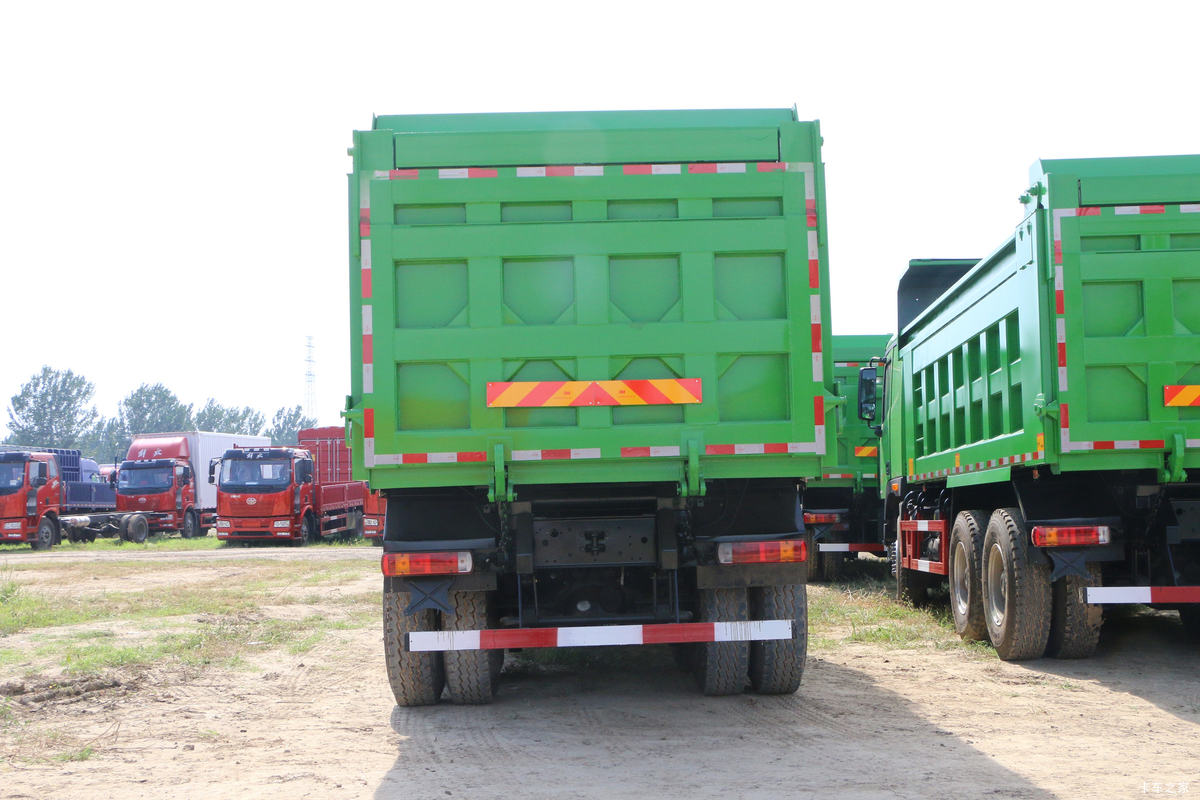

Dump Type | Rear tipping, steel construction |

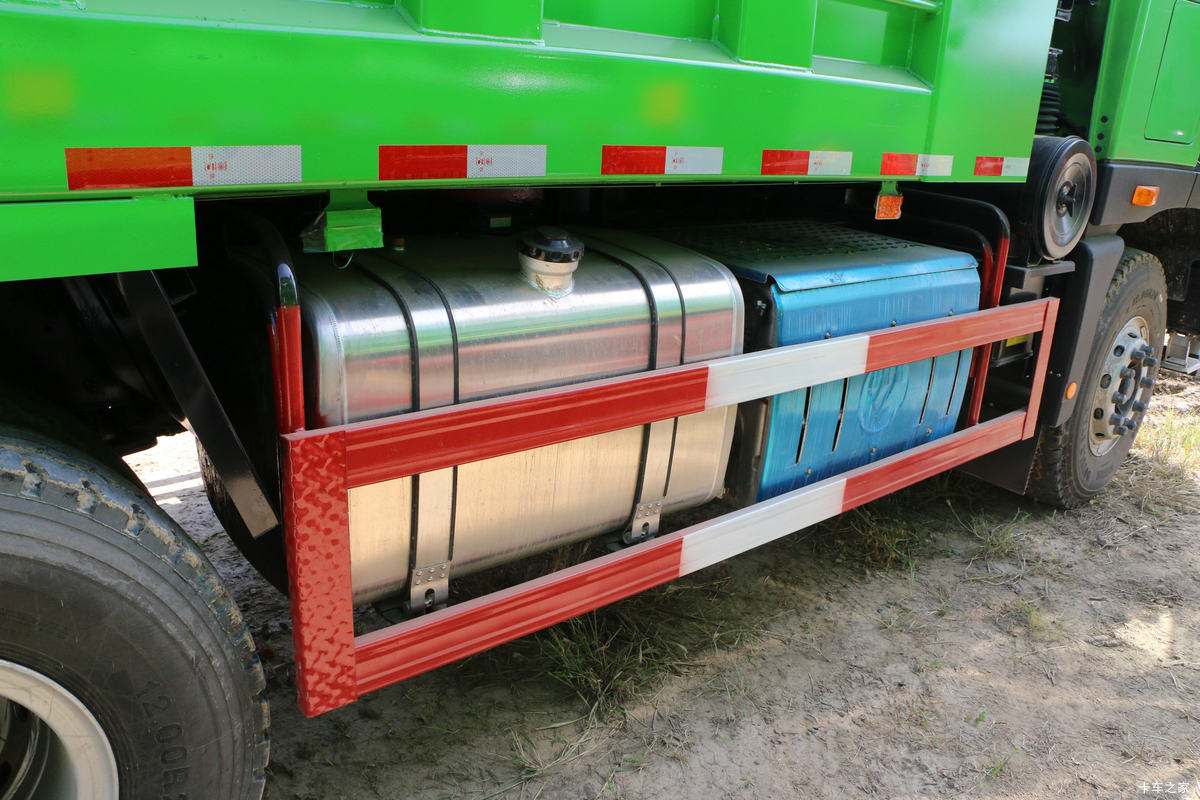

Fuel Tank | 350L (aluminum alloy) |

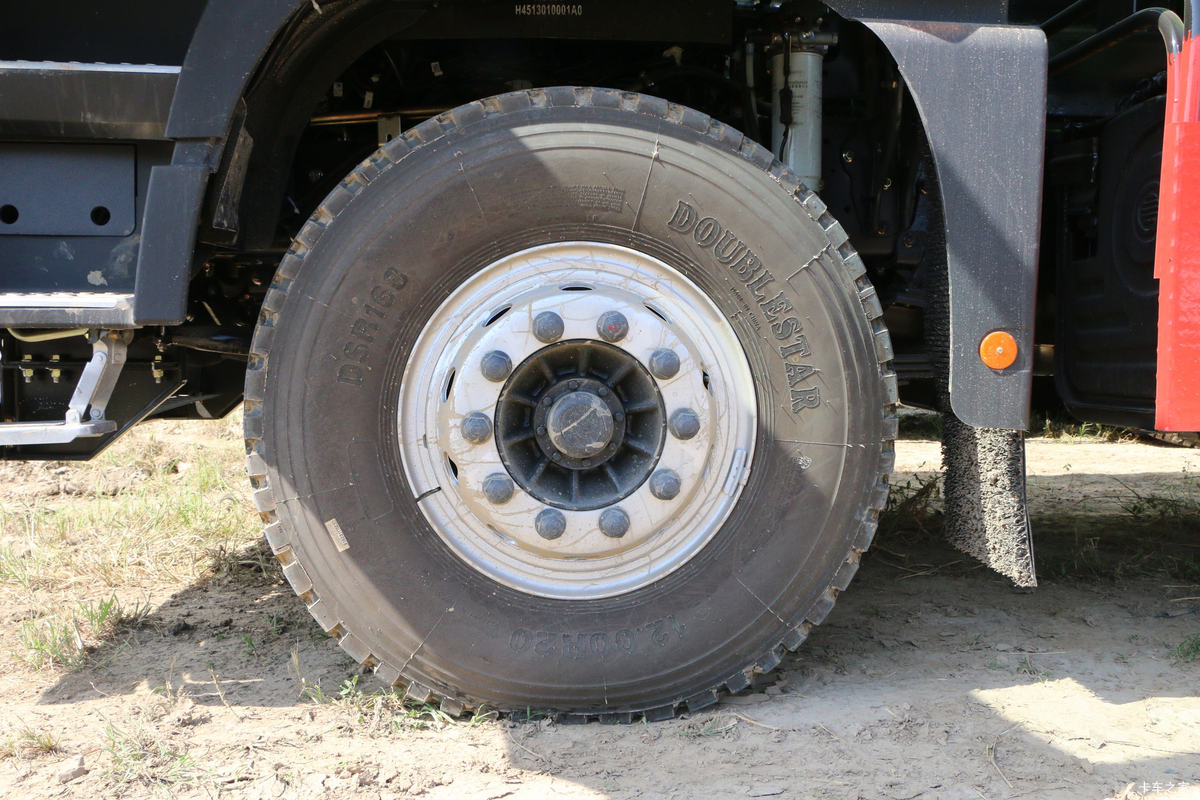

Tires | 10 pcs, 12.00R20 |
Brakes | Drum brakes with ABS |
Dimensions (L×W×H) | 8585 × 2550 × 3650 mm |
Cabin Type | GTL Flat Roof |
Emission Standard | China VI / Euro 6 |
Origin | Beijing, China |
Applications | Urban construction, mining transport |













Contact us today for a detailed quotation and to learn more!
