Beiben V3 8X4 Tipper Truck 375HP Dump Box

The Beiben V3 8×4 tipper truck is powered by a 375HP Weichai engine and equipped with a 6.8-meter rear dump body. With a 31-ton GVW and dual-reduction rear axles, this truck is ideal for heavy-duty applications like construction, mining, and highway transport.

Category:

Description

Beiben V3 8X4 Tipper Truck

Beiben V3 8X4 375HP tipper truck with rear dump body for heavy-duty construction

✅ Product Description:

The Beiben V3 8X4 dump truck (Model ND3310DD5J7Z07) is built for strength, stability, and efficiency in heavy-duty hauling applications. Powered by a Weichai WP10H375E50 engine with 375 horsepower and 1800Nm torque, this dump truck is designed to deliver dependable performance across challenging work environments, including construction, urban infrastructure, and road transport.

Its 6.8-meter rear tipping cargo box with a high-strength structure supports large volumes of sand, gravel, rocks, and other bulk materials. The Fast 12JSD180T manual transmission offers 12 forward and 2 reverse gears, providing smooth gear changes and control on both flat roads and inclines.

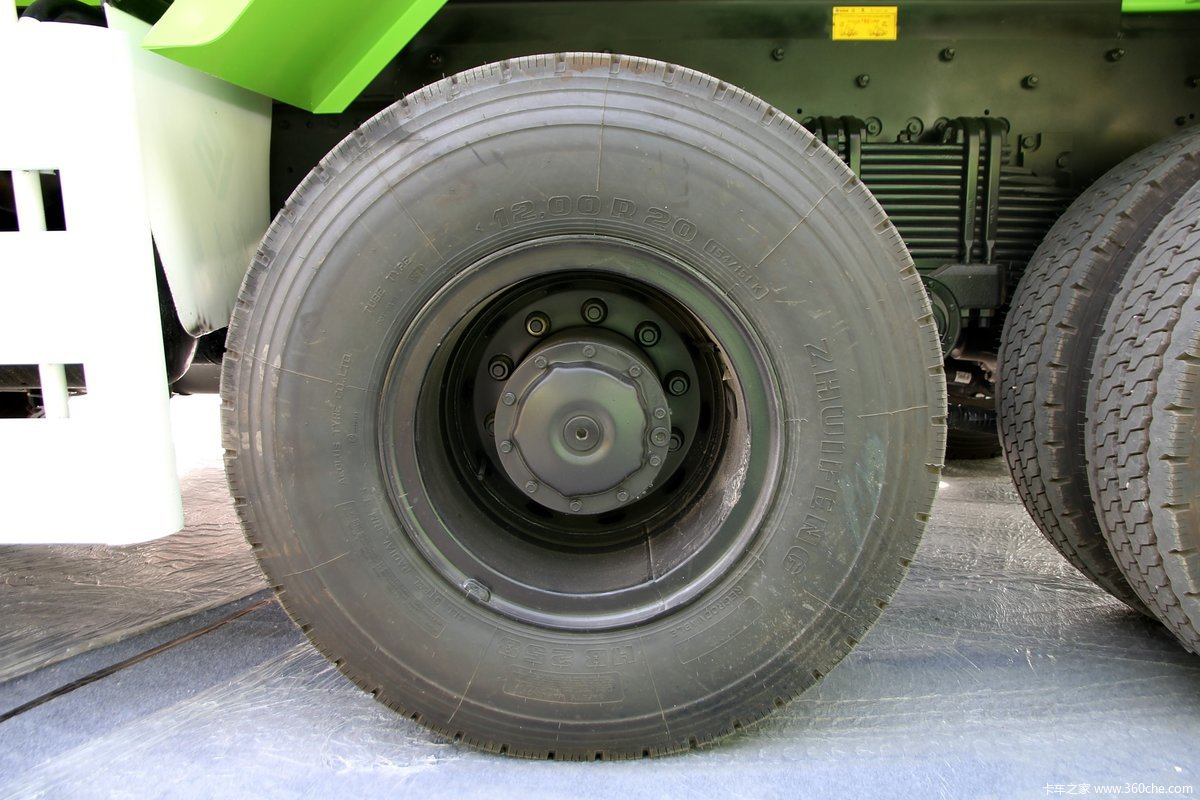

The 16T dual-reduction Beiben rear axle with a 5.263 gear ratio ensures excellent traction and high load-bearing capacity, even under full loads. Coupled with a heavy-duty leaf spring suspension (10/10/12) and 12.00R20 18PR tires, the chassis provides robust stability and road grip.

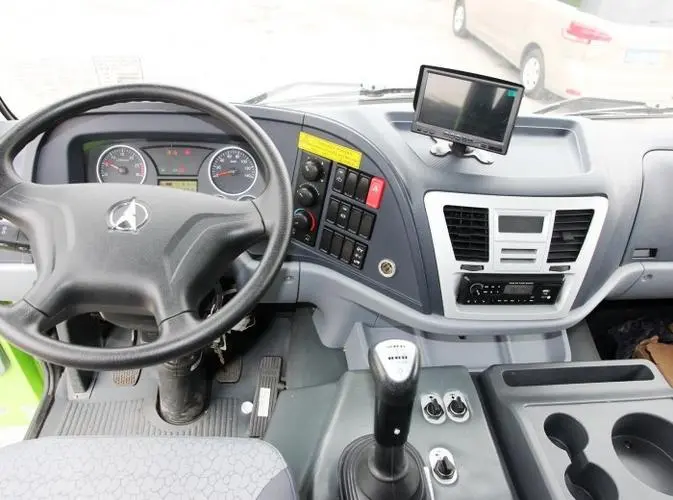

This model features a high-strength steel frame, a 300L aluminum fuel tank, and a manual air conditioning system inside the V3 cab. The cab also includes power windows, optional central locking, and ABS as standard for enhanced safety and comfort.

✅ Key Features and Technical Highlights:

  • 8X4 drivetrain, optimized for heavy-duty hauling

  • 375HP Weichai WP10H375E50 diesel engine, Euro V compliant

  • 6.8m rear tipping cargo body, heavy-duty steel structure

  • Fast 12-speed manual transmission (12JSD180T)

  • 16T Beiben dual reduction rear axles, 5.263 gear ratio

  • GVW: 31 tons, rated payload 15.67 tons

  • High-roof Beiben V3 cabin, 3-seater layout

  • Steel leaf spring suspension (10/10/12), built for durability

  • 12 wheels, multiple tire options (12.00R20 / 11.00R20 / 12R22.5)

  • 300L aluminum fuel tank, long operating range

  • ABS braking system, power windows, manual A/C

  • Gradeability supported by short first axle (1950+3100+1450mm wheelbase)

Contact us today for a detailed quotation and to learn more!
