Beiben V3 8X4 Dump Truck 380HP

The Beiben V3 8×4 dump truck features a powerful 380HP WeThe Beiben V3 8×4 dump truck features a powerful 380HP Weichai engine, robust Mercedes-Benz axle system, and a 20m³ high-strength steel tipping body. Designed for high-load operations in construction, mining, and earthmoving industries.ichai engine, robust Mercedes-Benz axle system, and a 20m³ high-strength steel tipping body. Designed for high-load operations in construction, mining, and earthmoving industries.

Category:

Description

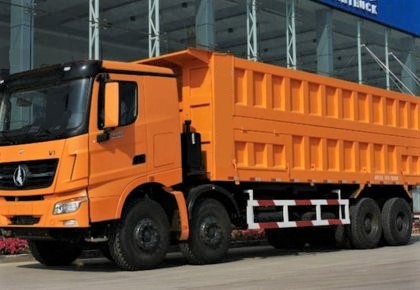

Beiben V3 8X4 380HP Dump Truck

✅ Product Description:

The Beiben V3 3138 8X4 dump truck (Model ND33101D43J7) is a high-performance heavy-duty vehicle built to handle intense workloads across construction sites, mining zones, and infrastructure projects. Powered by the Weichai WP10.380E32 engine, this 10-wheeler delivers 380HP of reliable power with outstanding torque for efficient transportation of sand, gravel, and bulk materials.

The Mercedes-Benz-derived axles—a 6.5T front axle and dual-stage reduction rear axles—ensure high durability, traction, and stable performance under full load. Paired with a Fuller manual transmission and 430mm clutch, the drivetrain provides smooth shifting and strong power transfer.

This model includes a 20m³ rear tipping cargo body (box size: 7600x2300x1500 mm), fabricated from wear-resistant steel with an 8-sidewall/4-rear/front-lift hydraulic structure, optimized for frequent offloading of heavy materials. The long cabin features a single sleeper for driver comfort on long hauls.

With a robust chassis, 12.00R20 radial tires, and a maximum speed of 85 km/h, the Beiben V3 8X4 dump truck delivers exceptional reliability and performance for heavy-duty use.

✅ Key Features and Technical Highlights:

  • Construction and earthmoving

  • Mining operations

  • Quarry and aggregate transport

  • Road and infrastructure projects

  • Model: ND33101D43J7

  • Drive Type: 8X4, Left-Hand Drive (RHD optional)

  • Engine: Weichai WP10.380E32, 6-cylinder, turbocharged, 9.726L

  • Power Output: 380HP @ 2200 rpm

  • Emission Standard: Euro II / Euro III

  • Clutch: 430mm, hydraulic with air assist

  • Transmission: Fuller brand manual gearbox

  • Front Axle: Mercedes 6.5T

  • Rear Axles: Mercedes-type double-stage reduction

  • Steering: TAS85 (Optional: ZF8098 with power assist)

  • Tires: 12.00R20 (optional: 12R22.5)

  • Box Size: 7600x2300x1500mm, 20m³ rear tipping

  • Body Type: Reinforced steel, front lift

  • Wheelbase: 1950 + 4300 + 1450 mm

  • Overall Dimensions: 11400 x 2500 x 3484 mm

  • Curb Weight: 14,870 kg

  • Payload Capacity: Up to 40,000 kg

  • Max Speed: 85 km/h

  • Electrical System: 24V, negative ground

✅ Applications:

  • Construction and earthmoving

  • Mining operations

  • Quarry and aggregate transport

  • Road and infrastructure projects

Contact us today for a detailed quotation and to learn more!
