Description

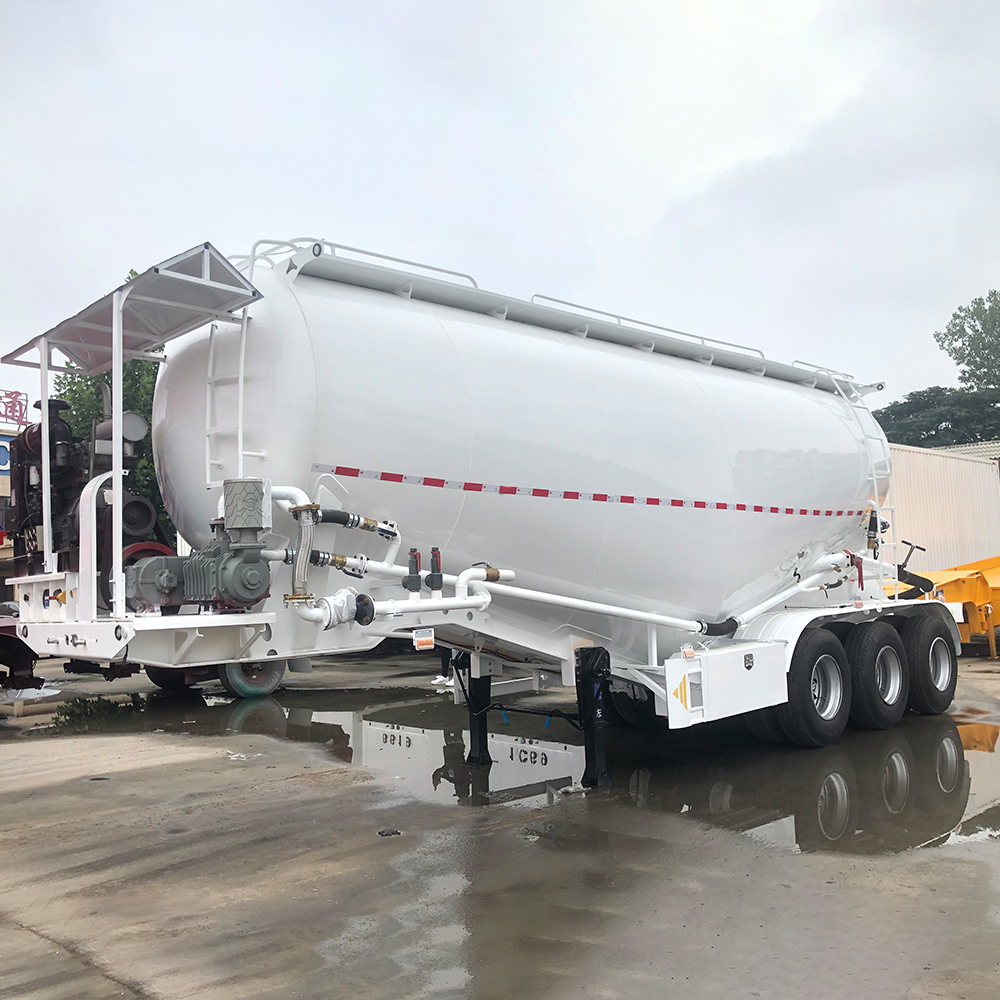

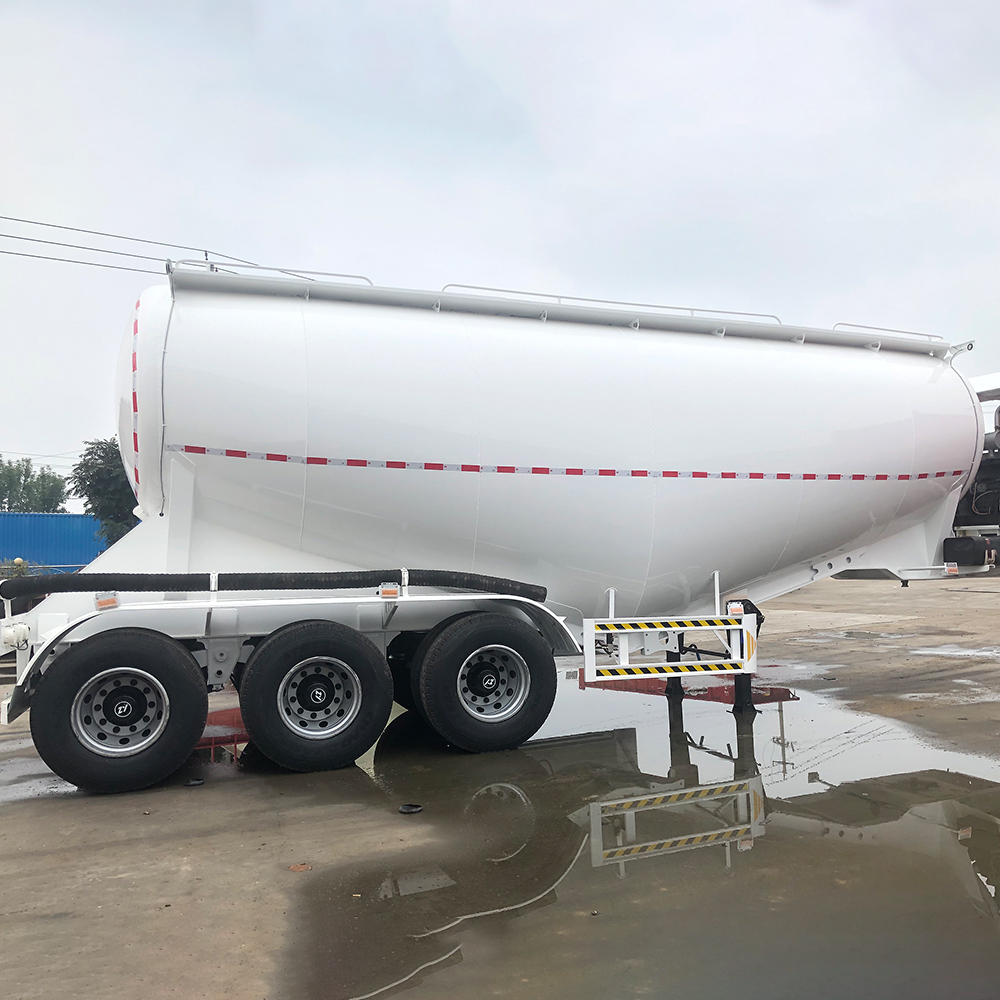

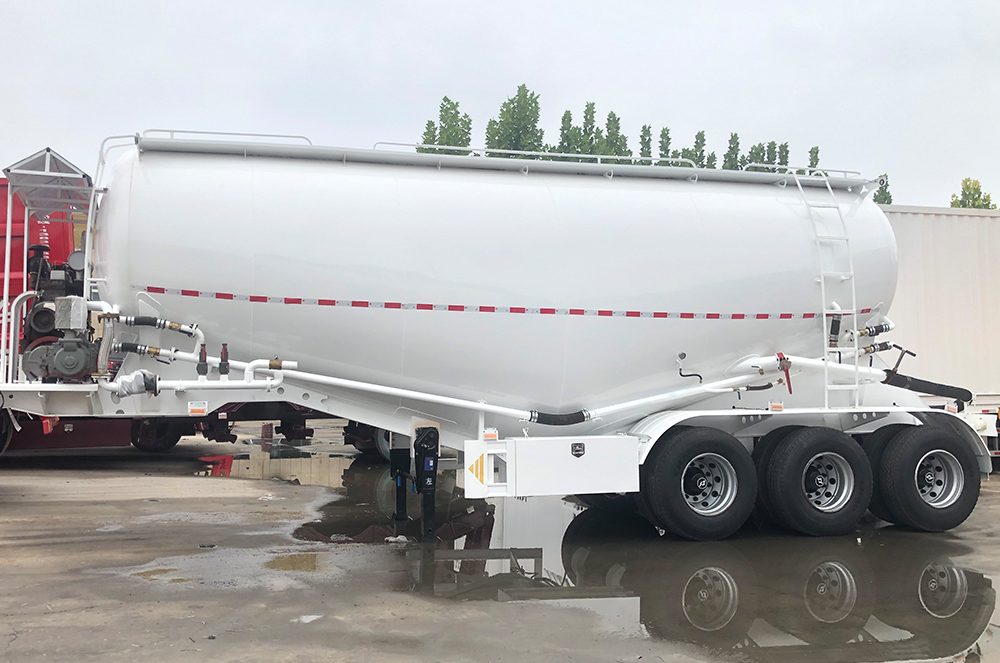

3 Axle Pneumatic Cement Trailer
✅ Product Highlights：
Precision-Engineered for Dry Bulk Haulage
35m³ V-Type tank maximizes payload while ensuring complete discharge
Triple 13T axles (BPW/FUWA options) deliver 39T gross axle load capacity
10,500kg tare weight through optimized high-tensile steel construction
Advanced Pneumatic Discharge System

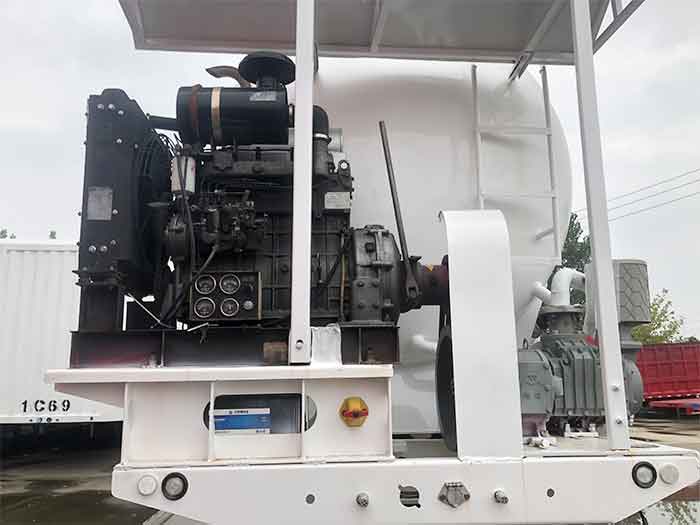

Integrated 45kW Weichai diesel power unit drives 12m³/min air compressor

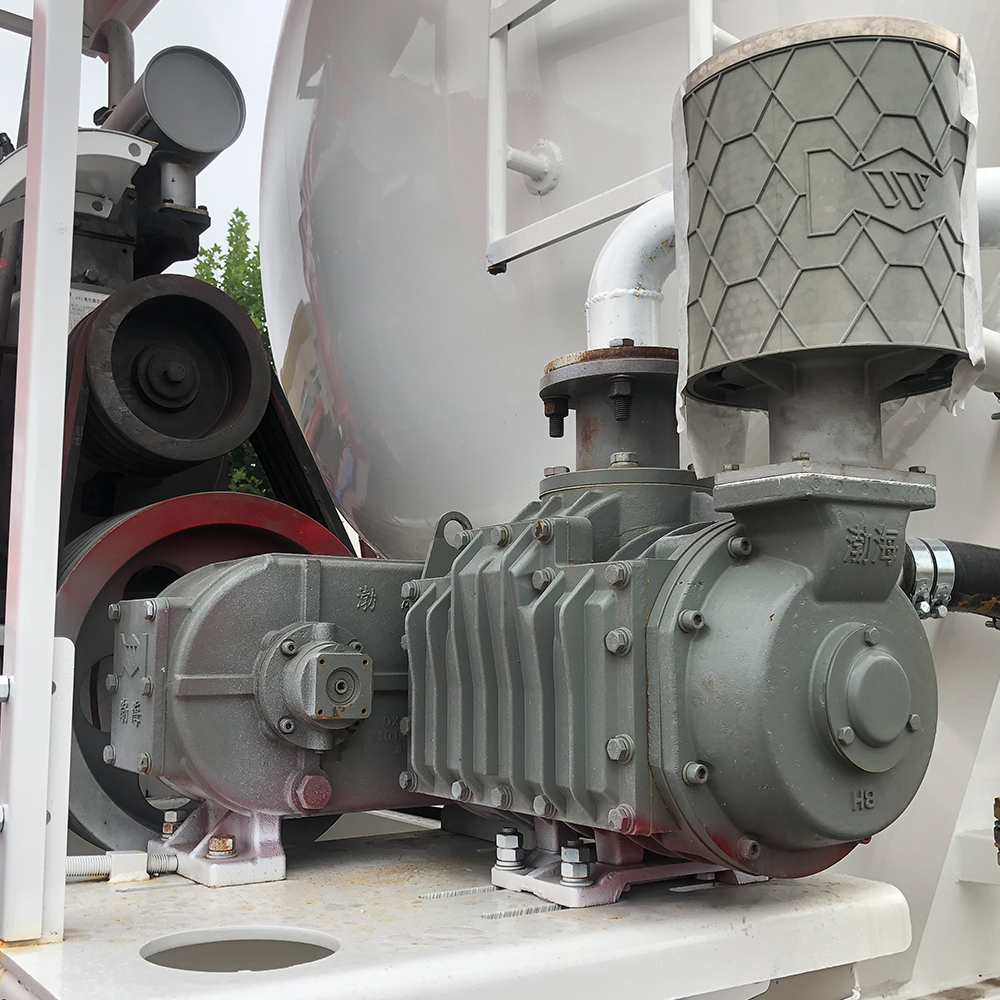

BOHAI/FUDA compressor options for consistent flow rates
Zero-residue W-Type internal baffles (patent pending)
Heavy-Duty Chassis Package
Robot-welded I-beam frame with 8mm reinforced wear plates
JOST 28T landing gear with grease-free maintenance points
Choice of mechanical (10-leaf) or air suspension
✅ Technical Specifications：
Capacity & Structure
• Volume: 35m³ (expandable to 40m³)
• Tank Material: 6mm T610L wear-resistant steel
• Compartments: Single with fluidization channels
Running Gear
• Axles: 3×13T (BPW/FUWA)
• Suspension: 10-leaf spring / Air ride (optional)
• Tires: 12×12R22.5 + 1 spare
• Brakes: WABCO dual-line with ABS
Discharge System
• Air Supply: 45kW Weichai engine + 12m³/min compressor
• Pressure Rating: 2.5 bar working pressure
• Discharge Rate: 1.2T/min
Dimensions
• Overall: 10,800×2,550×3,980mm
• Loading Height: 3,650mm
✅ Operational Advantages：
- Faster Unloading – 35m³ discharged in <30 minutes
- All-Terrain Ready – 30° approach/departure angles
- Smart Add-ons – Optional load cells & telematics
✅ Why This Stands Out:
Deeper V-angle (55° vs standard 50°) improves material flow
Thicker front/rear bulkheads (8mm) extend service life
Galvanized piping resists abrasive cement wear
Contact us today for a detailed quotation and to learn more!
